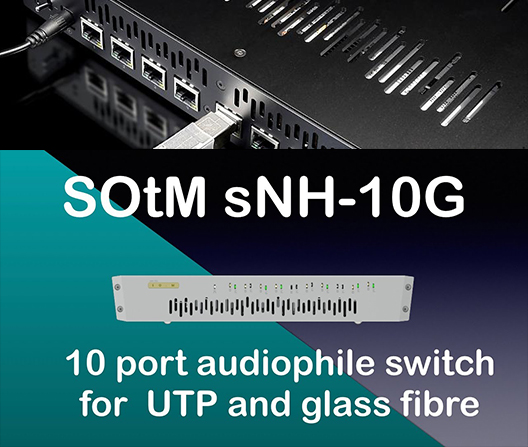

  The sNH-10G is the audio grade network switch for every network audio system. It has 8 LAN port and 2 SFP port, and the audio grade clock module, sCLK-EX, and the 10MHz master clock connector can be added optionally.

 Because the sound quality which effected by network environment is huge, the sNH-10G became available and required on the market now days. So we developed the sNH-10G by our own technology to maximize the best sound quality for every network audio system and the technology that we applied to our LAN isolator, iSO-CAT6, is used for sNH-10G.
 The final info will be updated shortly.
Key Feature



User interface
  Operating indicator LED x 1

 Link indicator Front LED x 10,Rear LED x 8

 Active indicator Front dual Color LED x10,Rear LED x 8

 Power switch : Power off, Power on with LED, Power on without LED


 Support Standard
  IEEE 802.3 10Base-T

  IEEE 802.3u 100Base-TX

Fast Ethernet
  IEEE 802.3u 100Base-FX 100Mbps over fiber optic

 IEEE 802.3ab 1000Base-T Gigabit Ethernet

 IEEE 802.3z 1000Base-T 1 Gbps over fiber optic

IEEE 802.3x flow control and backpressure

Full-duplex and half-duplex operation
  Supports 9216 byte jumbo packet length


RJ-45 ports x 8

 SFP ports x 2
  Optional audio grade clock

 sCLK-EX with 10MHz

Master clock input

DC power input

Input voltage : 6.5Vdc 8.5Vdc, 9Vdc, 12Vdc

Voltage tolerance: ±10%

Input current : 2A max
  5.5mm OD, 2.1mm ID adaptor jack

Operating environment

 Operating temperature : +10 ~ +30℃

 Storage temperature : 0 ~ +40℃

Operating & storage humidity : 10% ~ 90%


  TBD Kg >


The original sNH-10G was reviewed by Hans Beekhuyzen and it beat up how network environment can effect sound quality.



sNH-10G network switch

Buy Now

sNH-10G network switch with sCLK-EX instalation

Buy Now

sNH-10G network switch with Master clock 50 Ohm / 70 Ohm

Buy Now
